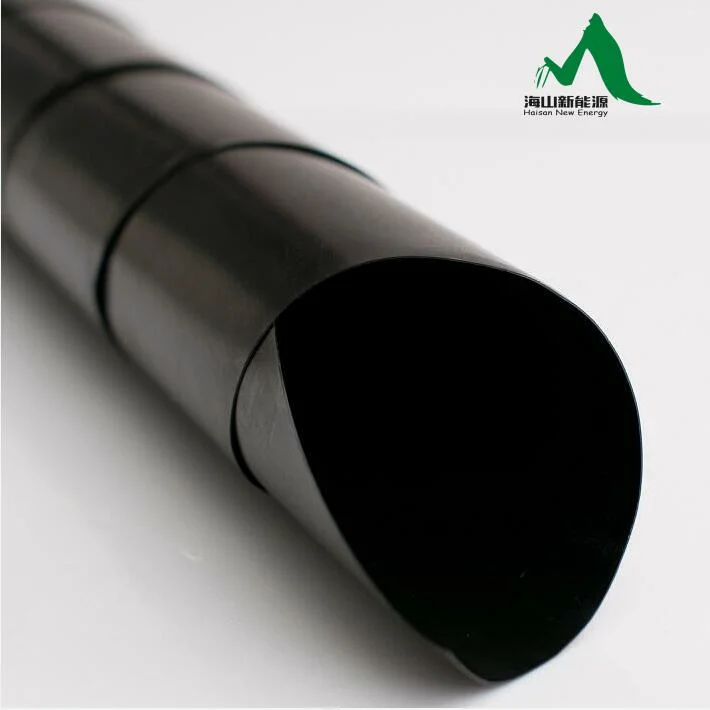

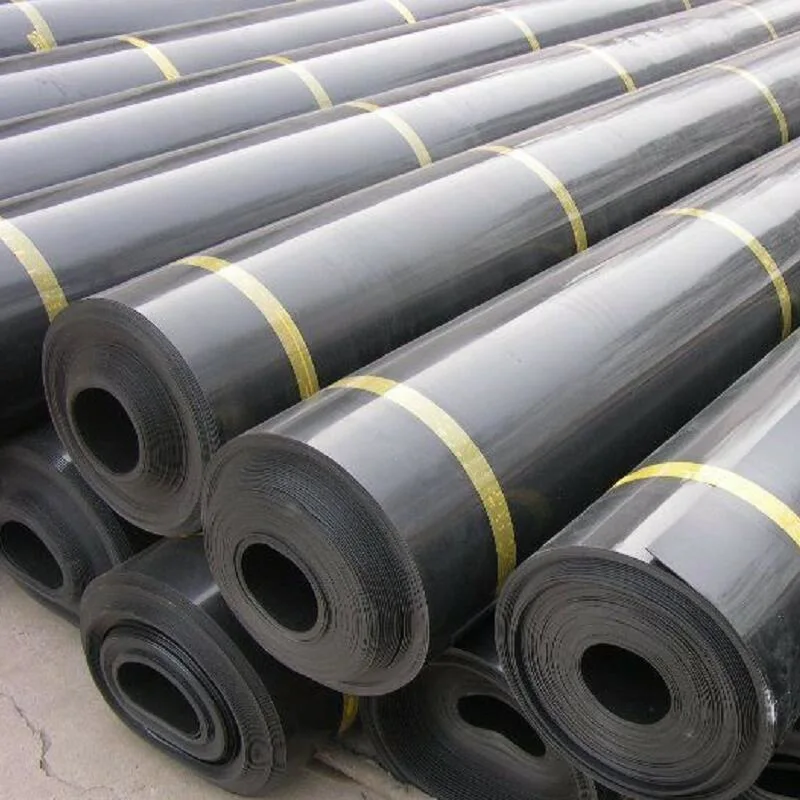

1mm~3mm HDPE geomembrane dam liner factory supply
DescriptionGeomembrane is blow molding by high molecular polymer such as PE
Product classification:
HDPE geomembrane, LDPE geomembrane, EVA geomembrane
Product performance:
Perfect anti-seepage, high obstruction, high puncture-resistance, excellent performance of chemical erosion resistance, good lasting quality, no pollution, easy to splice and construct.
Product main use:
Highways, irrigation works, lake dam, shore protection project, railways, tunnels, landfill waste site, sea-farming, salt pond, sewage treatment works, golf-links, etc.
Product specification:
Thickness: 0.20-2.0mm, width: 2500mm-10000mm
Technical data:
National standard for polyethylene film GB/T17643-2011 | ||||||
Thickness mm | 0.5 | 0.75 | 1.0 | 1.25 | 1.5 | 2.0 |
Tensile yield strength (vertical and horizontal) N/mm | ≥7 | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 |
Tensile breaking strength (vertical and horizontal) N/mm | ≥13 | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 |
Elongation at break (vertical and horizontal) % | ≥700 | |||||
Right angle tear strength (vertical and horizontal) N/mm | ≥62 | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 |
Puncture strength N | ≥160 | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 |
Carbon black content % | 2.0-3.0 |
Detailed Imagine:
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/f68ee9e0f49971a7f5e30f4e12c555b6.webp)
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/1754fb9d22b00739333db34045c2c542.webp)
Our production show
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/ff0443f1134c1b02caf4cef3bb242ea4.webp)
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/ee080dec153ac2a2b675fa5c48f45226.webp)
Payment and delivery
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/e4fffe47b41540b57b05f6580b0374ec.webp)
Certificates
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/0392c01d40cc72716dfb824ce2b08f5e.webp)
Our company
![1mm~3mm HDPE Geomembrane Dam Liner Factory Supply](https://img2.grofrom.com/buildmtrco/93b16d106f3fc2b7f35147dc61f49929.webp)
Contact us
Welcome to enquiry, we are striving to provide best quality and best service for you!
