Membrane switch, conductive film, Mobile phone panel, PVC, FPC, PET film, foil and other roll material and so on.

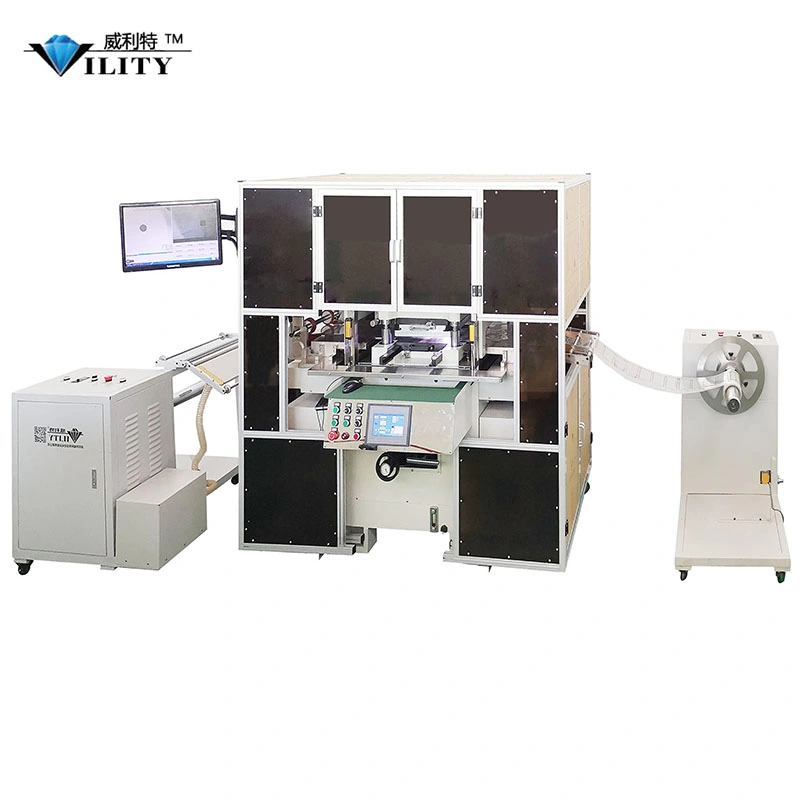

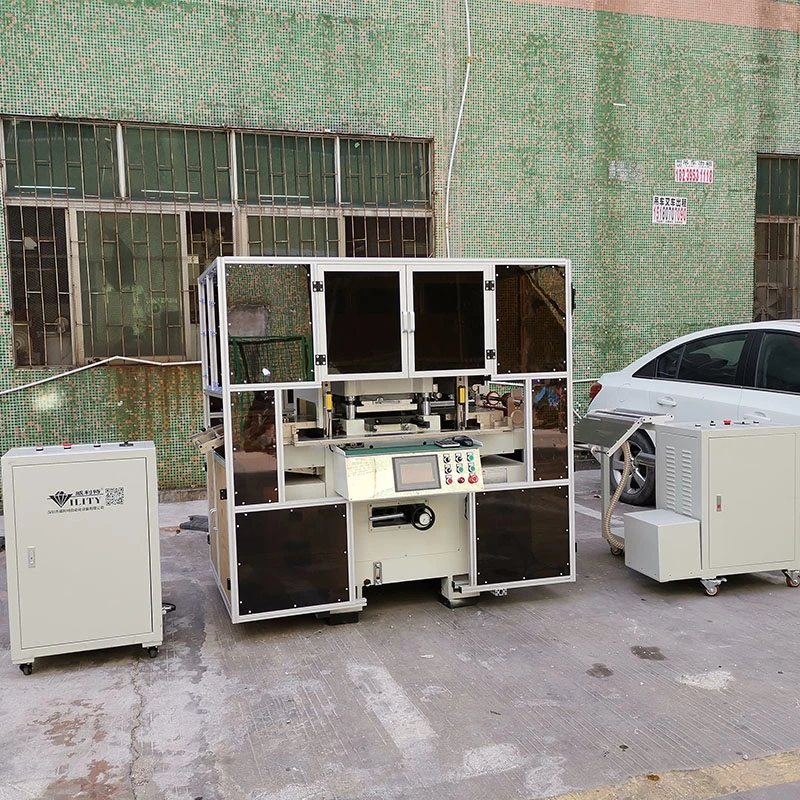

Equipment description:
Among them, the equipment mainly includes: CCD mobile platform, high-precision XYθ alignment platform, material
pulling mechanism, guide mechanism, unwinding mechanism, punching mechanism. The die-cutting machine has the
functions of automatic material pulling, automatic alignment, automatic slicing, etc., and separates the finished
products and waste materials according to the prescribed track. Once the equipment is adjusted, it will be completed
automatically without any operation of the machine.
Unwinder: The unwinder is used for unwinding of the coiled material. Each time the die-cutting machine punches, the pulling
roller will pull a jump distance of the product, the unwinding machine then unwinds. Ensure the working efficiency of punching.
Rewinder: When Punching is finished, the rewinding machine will automatically rewinds, it's high efficiency and labor saving.
Mold head can be customized according to customer's material.
The alignment platform is composed of XYθ4 axis and has the function of alignment eccentricity.
The material is fixed on the loading suction platform, easy to operate.
The alignment accuracy can be controlled within 0.02mm.
Man-machine interface control + button switch, can set a variety of functions and parameters, easy to operate.
Safety pressure plate, photoelectric switch, emergency stop button, small keyboard it's convenient to input parameters.
The computer is to show the status for CCD visual positioning.
There are 2 pieces of CCD130 pixels which are imported from America, can accurately calculates the spatial position of the
material and the mold according to the Mark point on the material.
We also add 2 pieces of safty grating for both sides, when worker reach this area, it will alarm, gives people comprehensive
safety protection.
Besides, behind of machine, we design a waste hole, it will automatically remove the waste, ensure machine running smoothly.
Adopts stepping motor and servo motor, stable and high efficiency.
Fans, barometer and thermometer.
Machine characters:
1. The XYθ alignment platform and CCD are fixed on the die-cutting machine, so that the alignment is stable and the jitter is small.
2. The punching precision is completely controlled by CCD and the positioning is accurate.
3. CCD automatic positioning punching, can automatically adjust the CCD field of view according to the size of the material.
4. The CCD automatically calculates the spatial position of the material and the mold according to the Mark point on the material,
and instructs the motor to control the adjustment platform X, Y, θ, and automatic punching.
5. After the equipment is adjusted, the punching will be completed automatically, the number of punching can be automatically set,
and an alarm device is installed to facilitate management.
6. Can be customized according to customer requirements to meet different requirements.
Machine parameters:
| Model no. | VT450CR |
| Max cutting size | 450mm*450mm |
| min cutting size | 80mm*80mm |
| Punching force | 15T(accept customize) |
| Cutting method | Knife/steel mold |
| Alignment mode | XYθ adjustment |
| Punching speed | 4000-6000 P / H |
| Air source pressure | 5 ~ 6kg / cm2 PSI |
| Machine size | L1500 * W900 * H1750mm |
| Power specifications: | 2 phases, 380V, 50Hz 1.5KW |
| Air supply pressure: | 4 - 6 kg/PSI |
| Air consumption: | 2.6L/cycle |
| CCD positioning accuracy: | ±0.02 mm |
| Punching accuracy | ±0.04 mm |
| Run motor | servo motor |
| Machine weight: | About 2000 KG |
